Quick Details

  • Products Status: Stock
  • Application: Desktop/Laptop/Server
  • Type: Wireless
  • Kind: External
  • Transmission Rate: 300/150Mbps
  • Interface Type: USB
  • Certification: CE/RoHS
  • Brand Name: Melon
  • Model Number: N828
  • Place of Origin: Guangdong, China (Mainland)
  • Frequency Band: 2.4Ghz
  • Interface: Dual RJ45 port
  • Chipset: Ralink RT3052

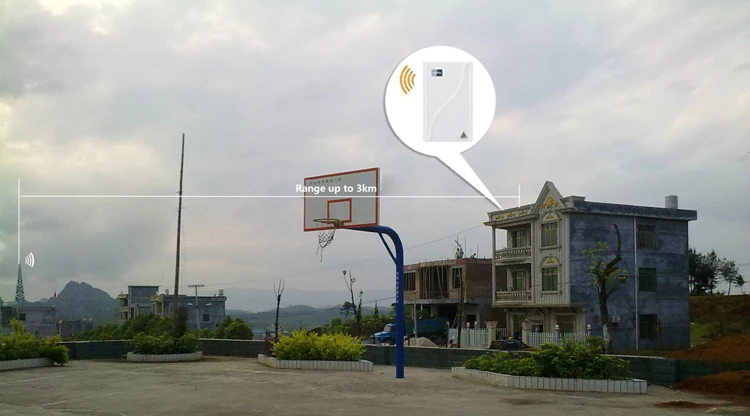

  • Receiving distance: 3KM
  • Transmit range: 300 meters
  • Standard: IEEE 802.11 b/g/n
  • Transmission rate: 300Mbps/150Mbps
  • Working channel: 1--13
  • Antenna: directional panel 14dBi antenna
  • Power supply: Passive POE adapter 24V

Packaging & Delivery

Packaging Details paper box,40pcs/ carton
Delivery Time 3-5 business days



Product Description

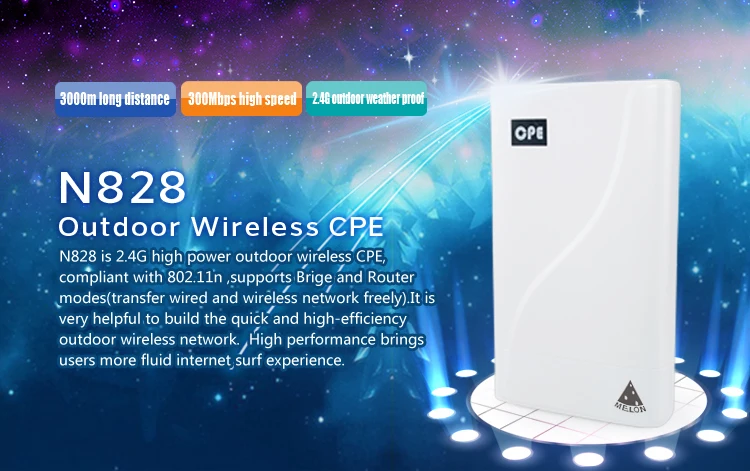

Lan to wifi converter,24V POE power supply,300Mbps ,long distance outdoor CPE Melon N828



Features:



* Compatible with IEEE 802.11b/g/n wireless standards

* 2.4GHz frequency band

* High speed transfer TX data rate up to 300 Mbps(150M available)

* Supports wireless data encryption with 64/128/152 bit WEP,WPA-PSK/WPA2-PSK, WPA/WPA2 security;

* Wide Range coverage,outside used,waterproof antenna

*Various working mode:AP/Router/Bridge/Gateway/Station/Repeater

*Support POE power supply







Specifications:

Hardware

Chipset

Ralink RT3052F

SDRAM

32MB

Flash

4MB

Wireless transmission rate

2.4GHz,2T2R,up to 300Mbps

Ports

1xWAN,1xLAN

1x reset

Power

24V/1A POE

LED light

powerx1,WAN portx1,LAN portx1,signal status indicatorx3

Wireless Parameter

Protocol standard

IEEE802.11n, IEEE802.11g, IEEE802.11b

Frequency Range

2.4-2.4835GHz

Working channel

1~13

Receive sensitivity

150M_2.4G: -74dBm;

54M_2.4G: -79dBm;

6M_2.4G: -94dBm

Wireless security

Wireless MAC address filtering;

Wireless security function switch;

64/128/152 bit WEP;

WPA-PSK/WPA2-PSK, WPA/WPA2;

Software

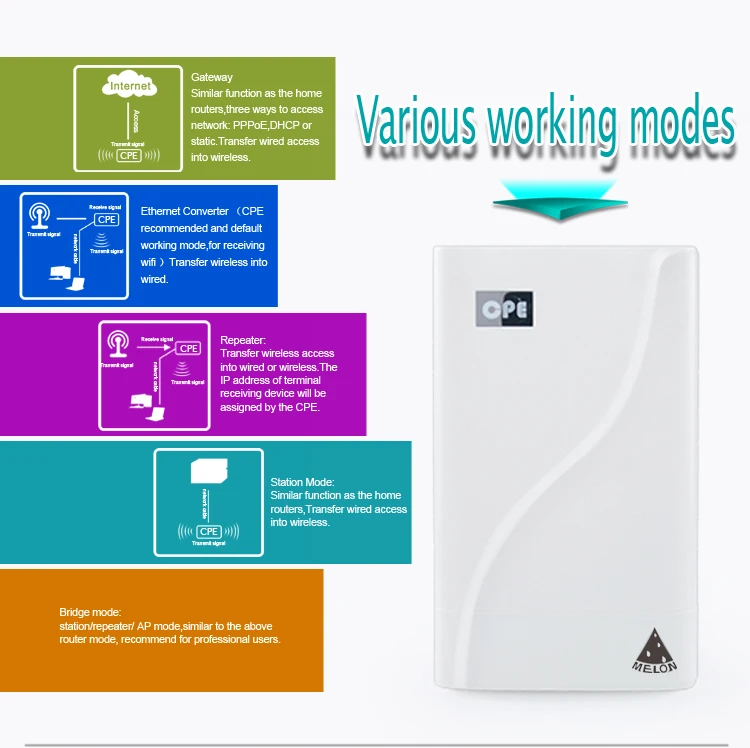

Working modes

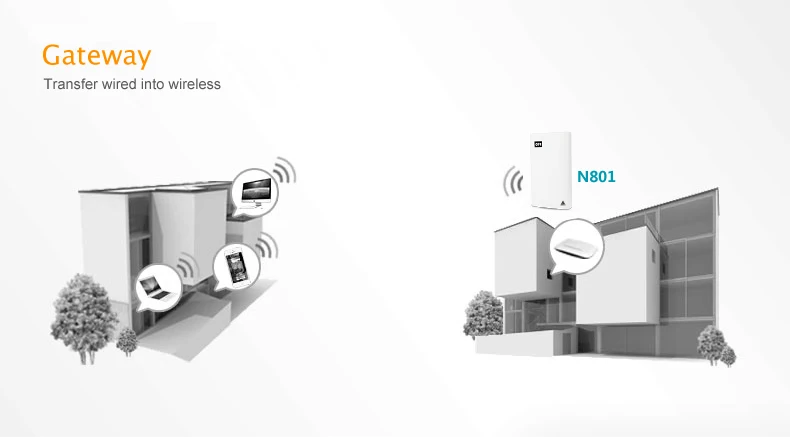

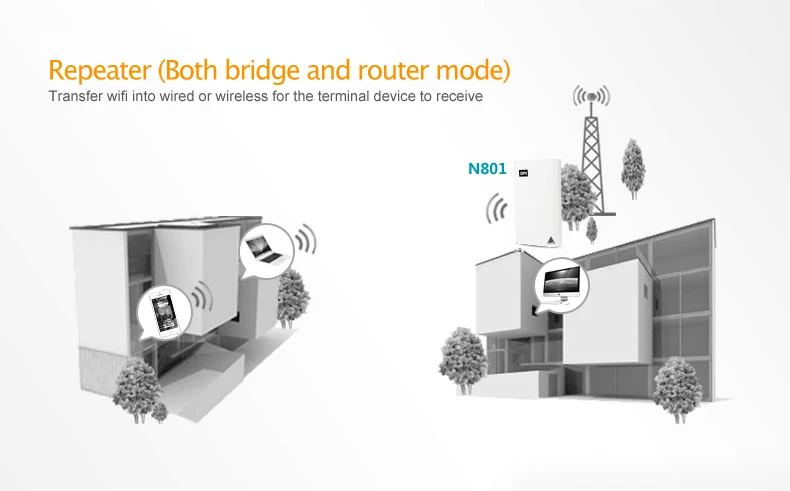

Router:Ethernet Converter/Gateway/Repeater

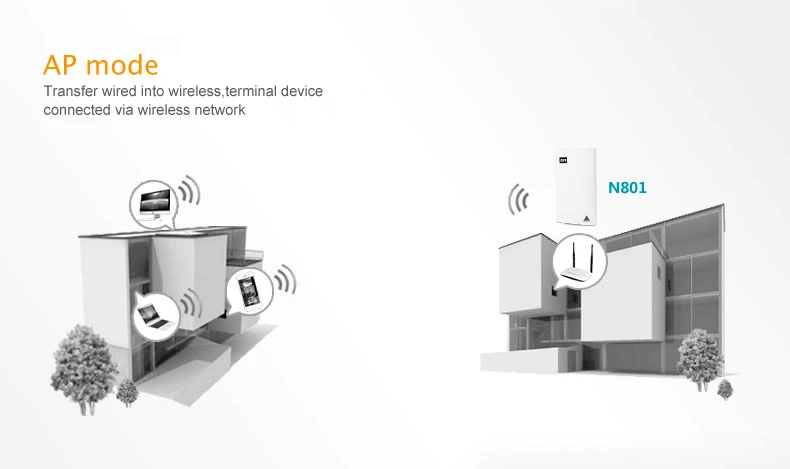

Bridge:Station/AP/Repeater

Wireless network setting

Multiple SSID setting

Auto channel select

Auto bandwidth

single/dual data flow

Others

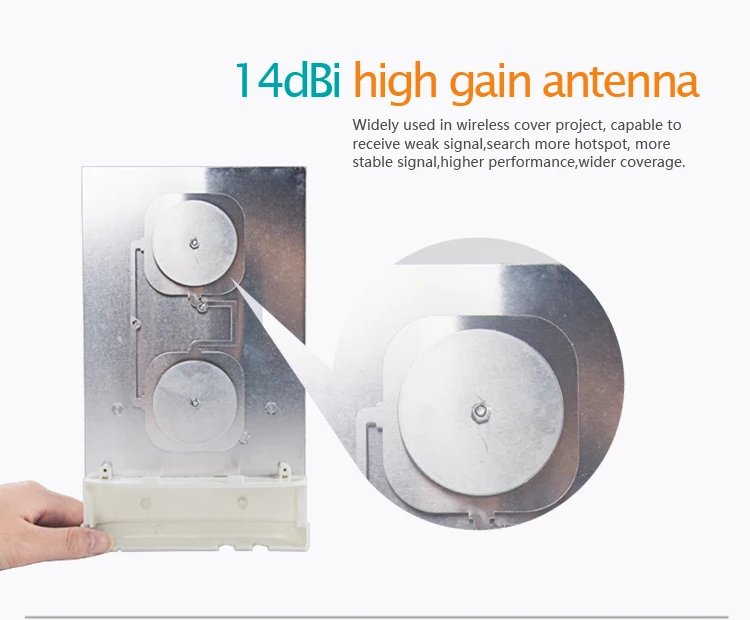

Antenna

14dBi built-in high gain antenna



Operating environment

Working Temperature:0°c--40°c;

Storage Temperature:-40°c--70°c;

Operating humidity:10% --90%RH noncondensing;

Storage humidity:5%--90%RH noncondensing.



Application:

Various operation mode,fit for different using environment:



Package Content:







Welcome to visit our factory!

Contact:

Email:sales1 at tuoshi.cn

Skype:tuoshione

Tel:0086-18170147011
